Product Description
Installation Clearances:
- Non-Combustible: 0"
- Combustible: Side 6" Rear 3"
Gas Requirement:
- Consumption: 100,000 BTU/HR
- Gas Pressure: 5" Water Column Natural Gas
- Gas Pressure: 10" Water Column Liquid Propane Gas
Please specify Left or Right hinge location when ordering.
ETL Certified
Left Hinge:
| Item No. | D x W x H (in) | ID x IW x IH (in) | Hanger Type | Gas Pipe Inlet O.D (in) |
BTU/HR | Burners | G. W. (lb) |
| EQ-24L | 30 x 24 x 68 | 26-1/2 x 20 x 42 | Fixed Bracket | 3/4 | 53,000 | 2 | 460 |
| EQ-30L | 30 x 30 x 68 | 26-1/2 x 26 x 42 | Fixed Bracket | 3/4 | 58,000 | 2 | 528 |
| EQ-36L | 36 x 36 x 79 | 32 x 29-1/2 x 50-1/2 | Carousel | 1 | 63,000 | 4 | 620 |
| EQ-48L | 48 x 48 x 82 | 43 x 41 x 53 | Carousel | 1-1/4 | 143,000 | 6 | 810 |
Right Hinge:
| Item No. | D x W x H (in) | ID x IW x IH (in) | Hanger Type | Gas Pipe Inlet O.D (in) |
BTU/HR | Burners | G. W. (lb) |
| EQ-24R | 30 x 24 x 68 | 26-1/2 x 20 x 42 | Fixed Bracket | 3/4 | 53,000 | 2 | 460 |
| EQ-30R | 30 x 30 x 68 | 26-1/2 x 26 x 42 | Fixed Bracket | 3/4 | 58,000 | 2 | 528 |
| EQ-36R | 36 x 36 x 79 | 32 x 29-1/2 x 50-1/2 | Carousel | 1 | 63,000 | 4 | 620 |
| EQ-48R | 48 x 48 x 82 | 43 x 41 x 53 | Carousel | 1-1/4 | 143,000 | 6 | 810 |
★ Write a Review

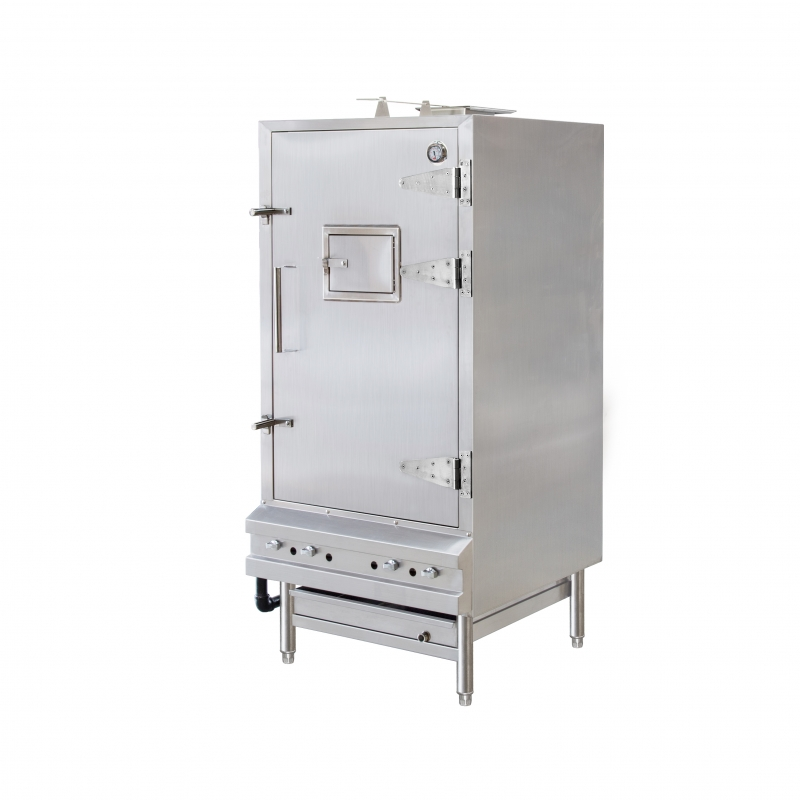

Stainless Steel Chinese BBQ Oven
SALE
Sale Price
$3,276.38/Each
Save 45%
Model:
GSW
Shop all GSW products →
Type
Mongolian B.B.Q. Oven
Resources & Documents
Need Help?
- 📞 (408) 673-9999
- ✉ sales@celebratefestivalinc.com
- 📍 235 Whitney Pl, Fremont, CA 94539
- 💬 Live Chat — coming soon
1 / 1
Ask a Question
About: Stainless Steel Chinese BBQ Oven
