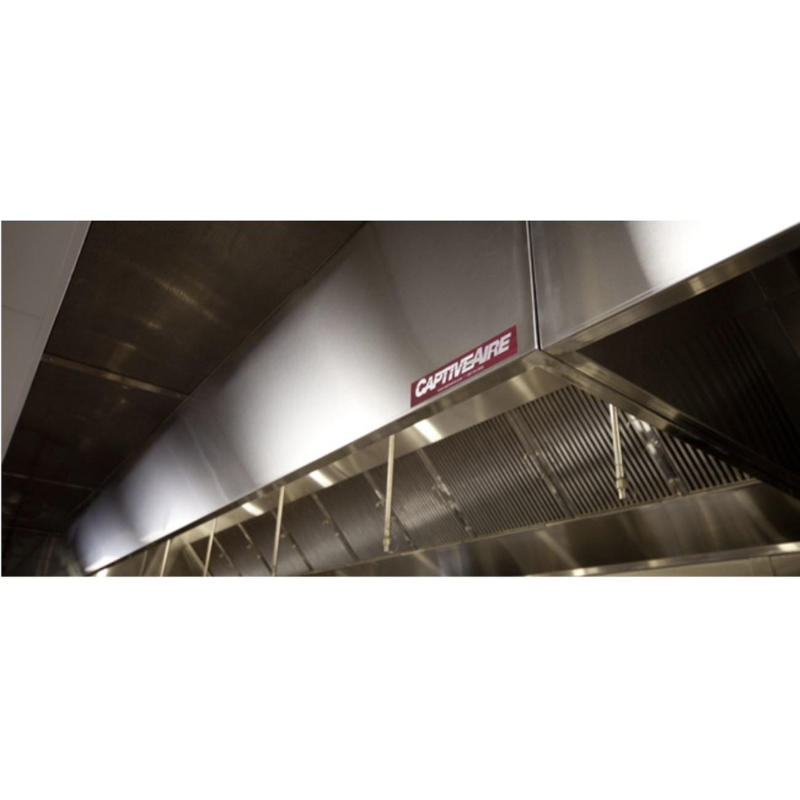

ND-2 Series Wall Canopy Hood Stainless Steel, Type I (Grease Hood) Wall Canopy,Exhaust Only Hood

Original price $0.00 - Original price $0.00
Original price
$0.00 - $0.00
Current price $0.00
Sorry, product can't be added to cart as price not available. Please contact Customer Support @ 408-673-9999 or

ND-2 Series Exhaust only hood capture the air above cooktops, deep fryers, griddles, grills, woks, etc and open flame stoves. Comes insulated with double-wall rigid front to reduce radiant heat into the kitchen. The stainless steel baffle filters and deep grease trough will allow for easy clean up. Double wall insulated construction. Adjustable feet. May allow for a reduction in required side overhangs.


3" Standoff: A 3" Stand-off for a hood to satisfy Local codes that require it. It is fabricated and installed on the back of the hood.

Grease Drain with Removable Cup: Stainless steel construction, Removable for easy emptying, Keyhole or slot mount grease cup.

Baffle-Type Grease Filters: Provide Better grease filtration.

Mechanical Baffle: One part of the fume hood that assist in controlling the air flow.

Item Dimensions:

Width: 144.00 in.

Depth: 54.00 in.

Height: 24.00 in.


Superior Exhaust flow rates. Insulated double wall rigid front has aerodynamic design that reduces radiant heat into the kitchen, prevents condensation and provides exceptional capture and containment of cooking vapors. Factory pre-wired lighting to illuminate the cooking surface is accessible from the bottom of the hood. Fully welded and polished front corners. Rigid single wall end panels reduce weight. Produced on a high volume assembly line at one of six manufacturing facilities to reduce lead times shipping costs. The CORE protection system is designed to provide primary coverage for ventilating equipment including hoods, ducts, plenum and filters. Grease drain system with removable 1/2 pint cup for easy cleaning.
