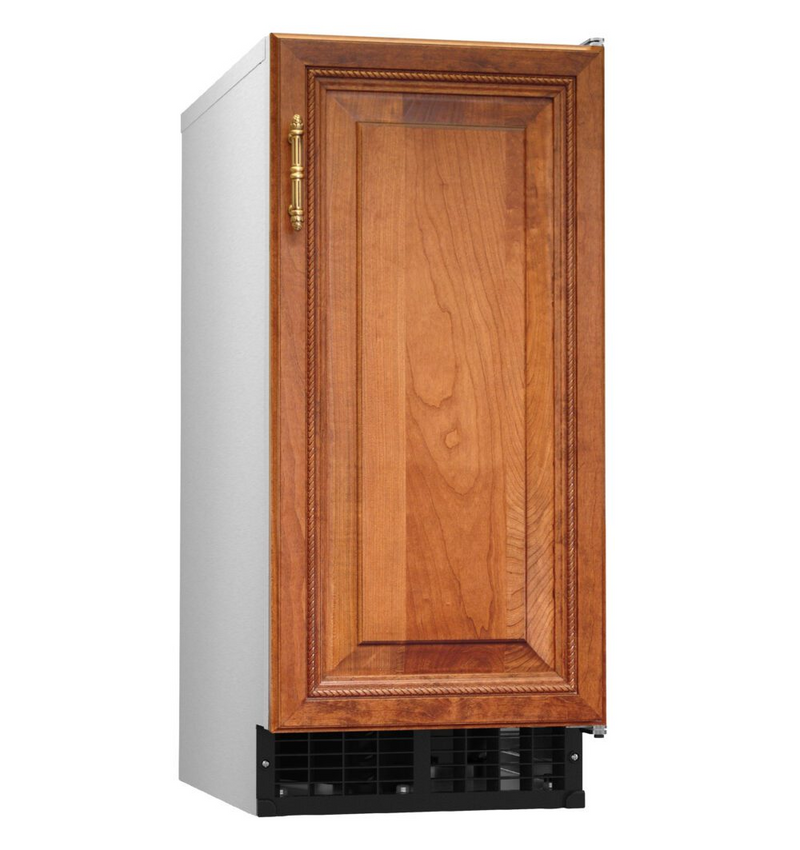

Hoshizaki AM-50BAK-DS Top Hat Ice Maker – Air-Cooled Undercounter, Custom Cabinet Panel Ready

The Hoshizaki AM-50BAK-DS Top Hat Cuber Ice Machine is a compact, air-cooled undercounter solution ideal for hotels, bars, office breakrooms, and kitchens. Designed for custom cabinet integration, this undercounter ice maker produces up to 54 lbs of crystal-clear Top Hat ice cubes per day and features a built-in storage bin with 27 lbs of ready-to-use ice.

The AM-50BAK-DS combines space-saving efficiency with convenience: its front-in, front-out airflow system eliminates the need for side or rear clearance, making it perfect for tight spaces. The undercounter design stands under 34″, and the unit accommodates custom cabinet panels for seamless integration. With a stainless steel exterior, eco-friendly R290 refrigerant, and UL approval for outdoor use, this ice machine ensures durability, energy efficiency, and reliable operation.

Easily maintainable features, including a removable water circuit and optional HS-5061 drain pump, allow for quick cleaning and longer equipment life. The DS model includes compatibility with the door reversal kit HS-0229 for custom cabinet installation.

Key Features

• Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
• Up to 54 lbs of ice produced per 24 hours
• Up to 27 lbs of built-in storage capacity (ft3)
• Produces top hat ice cubes
• Undercounter design is less than 34″ tall
• Front in, front out airflow
• UL approved for outdoor use
• Easily disassembled water circuit for easy cleaning
• (-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
• Accessory – HS-5061 drain pump assembly
• Environmentally friendly R290 refrigerant
• Heat Rejection: 1,400 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 95°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 2 amps (15 Amp Max fuse)
• 9 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span.
