Middleby Marshall DZ26T CTX Infrared Conveyor Oven - Single/Double/Triple Stack options Available - Single Stack
⍰ Contact us to confirm availability @ 408-673-9999 or sales@celebratefestivalinc.com
⍰ For Pricing - contact us @ 408-673-9999 or sales@celebratefestivalinc.com
Dimensions:
| Heating Zone | 26” | 660 mm |
| Baking Area | 2.9 ft² | 0.27 m² |
| Belt Length | 42.16” | 1071 mm |

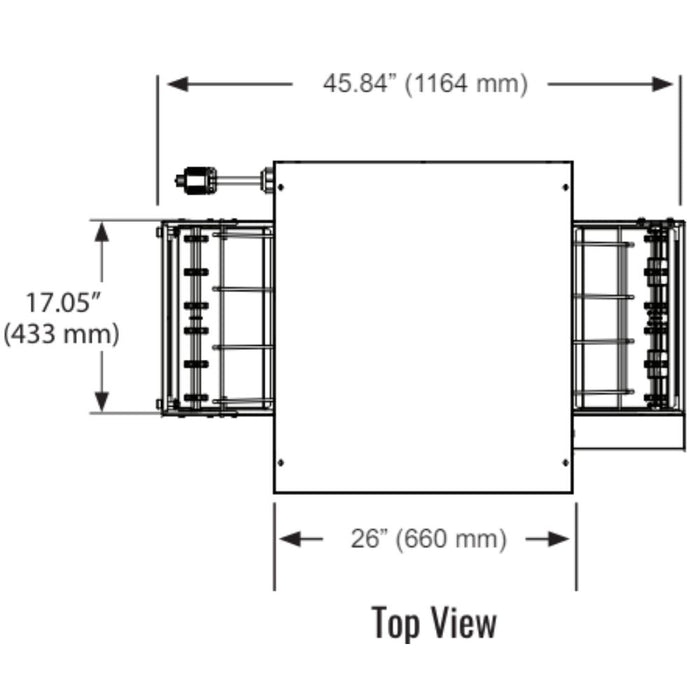

| Overall Length | 45.84” | 1164 mm |
| Belt Width (Single) | 16” | 406 mm |
| Belt Width (50/50) | 7.5” / 7.5” | 191 mm / 191 mm |

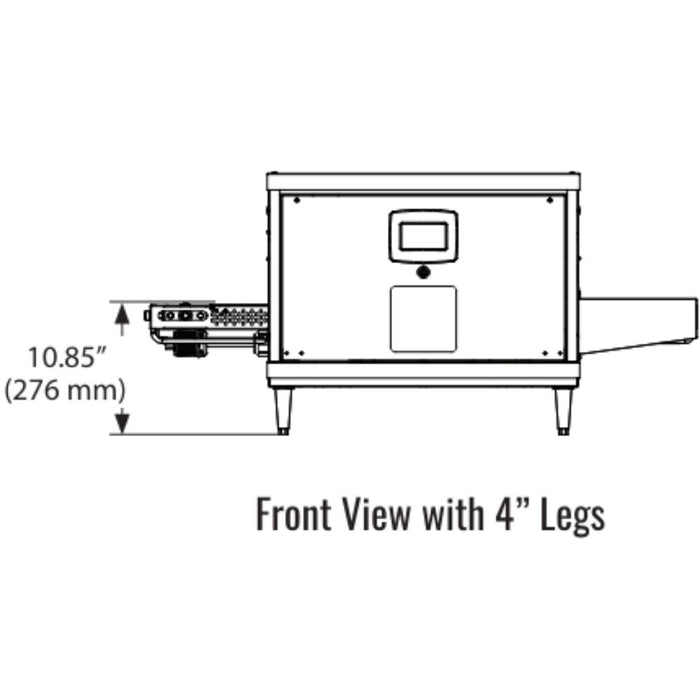

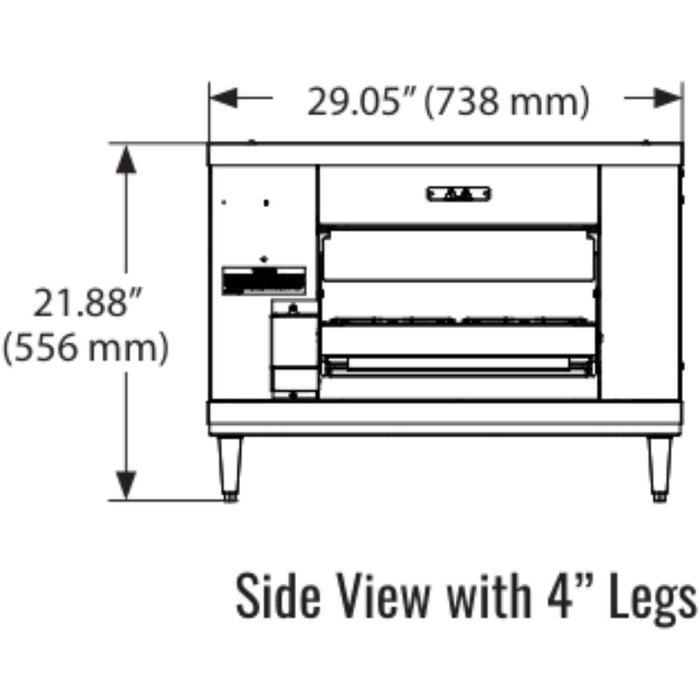

| Height with 4” (102 mm) legs | 21.88” | 556 mm |

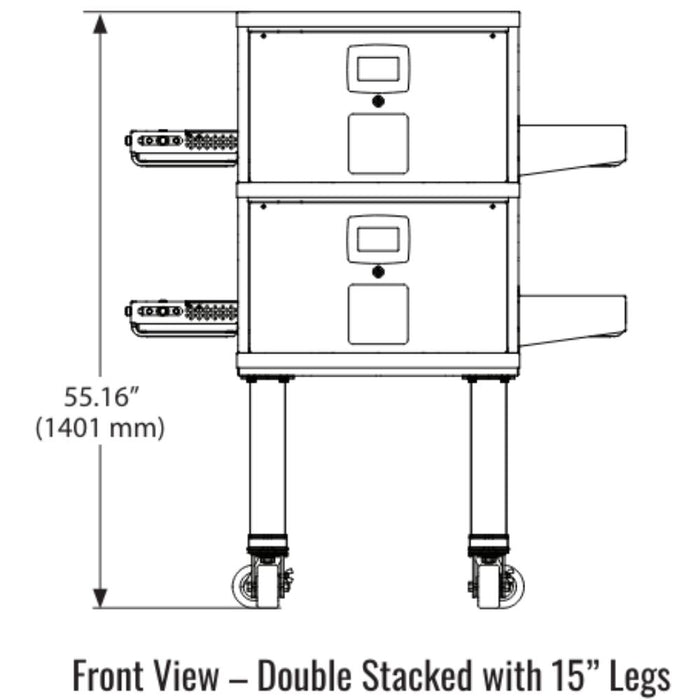

| Height with 15” (381 mm) legs | 39.38 | 1000 mm |
| Depth | 29.06” | 738 mm |
Specifications:
Standard Features:
- 18-gauge stainless steel exterior
- Fully insulated on all sides
- Top and bottom infrared emitters evenly heat (two on top and two on bottom)
- The “Cool Skin” safety feature keeps the external surface of the oven under 120°F
Quiet operation: Independently-controlled microprocessor with time/date clock, standby mode, and self-cleaning cycle - The patented MenuSelect® feature allows the operator to preset up to 15 different time and temperature combinations
- Stackable up to three high
- For installation under a ventilation hood
